Specification:
- Reverse pulse jet, high pressure cleaning system with a 99.9% cleaning efficiency.
- 990 Sq. Ft. filtration area.
- Rated at 5600 CFM @ 8” static pressure.
Structural:
- Single compartment 10-gauge steel housing.
- (2) Top access hinged doors for easy access to filter media.
- Safety ladder from base to the collector roof. Ladder top will telescope down for travel.
- Service platform at the base of the ladder is integrated into the travel frame.
- Folding top handrails.
- (2) 14” dust inlets with angle iron mounts. (1) located on each side of the housing for ducting.
- High inlet compartment entry along with a full-length baffle plate greatly reduces the dust loading on the filter media, extending the filter life.
- Collection hopper with inspection door and pneumatic vibrator.
Drive / Pulse System:
- 15 H.P. TEFC direct drive fan rated at 5600 CFM (@ 8” H2O / Sea level / 70 F).
- Fan is mounted to the trailer frame with the flanged inlet tied directly to the collector housing.
- (20) 8.1/4” x 40” cartridges for a total of 990 square foot filtration area.
- (4) 1” solenoid valves mounted on a heavy-duty air manifold.
- Filter / Regulator with gauge.
- Minihelic gauge allows a visual reference of filter media condition.
- 90 – 100 PSI air supply is the responsibility of the customer.
7.1/2 H.P. Automatic Recycle System:
- Reclaimed material is automatically returned to the silo.
- 7.1/2 H.P. blower system with TEFC motor, coupling, inlet filter, relief valve and check valve.
- Collection pod with 3” connections.
- 6” rotary vane discharge for an even and consistent feed rate.
- 3” return line on the silo is the responsibility of the customer.
Automatic Rescue System:
- A rotary type bin level indicator is factory mounted and factory wired in the side wall of the collection hopper.
- This system utilizes proprietary PLC software to alert the operator of a collection hopper overfill issue from the bin level indicator and begin running the automatic recycle system in an accelerated mode to clear out the overfill.
- A panel mounted red light which is activated by the hopper bin indicator.
- A panel mounted yellow light indicates the system is running in “Auto Rescue Mode”
- The recycle system will automatically return to the regular recycle mode 30 minutes after the red light clears.
Control:
- Designed to automatically cycle the filter cleaning pulse.
- Self-contained NEMA 4 control panel for the motor starter and disconnect.
- Adjustable digital control for air pulse duration and cycle times.
- Prewired and tested prior to shipment.
- Electrical supply is the responsibility of the customer.
Transportation:
- Trailer frame is complete with structural supports for travel.
- (2) 7,000 lbs. axles complete with wheels, tires and fenders
- 2.15/16” ball type receiver hitch.
- (3) leveling jacks
- Hydraulic brake system.
- Tail lights
General:
- Customer choice of two-part polyurethane paint in grey, white or tan.
- All required installation is the responsibility of the customer.
325-203-1565 chiparocllc@gmail.com

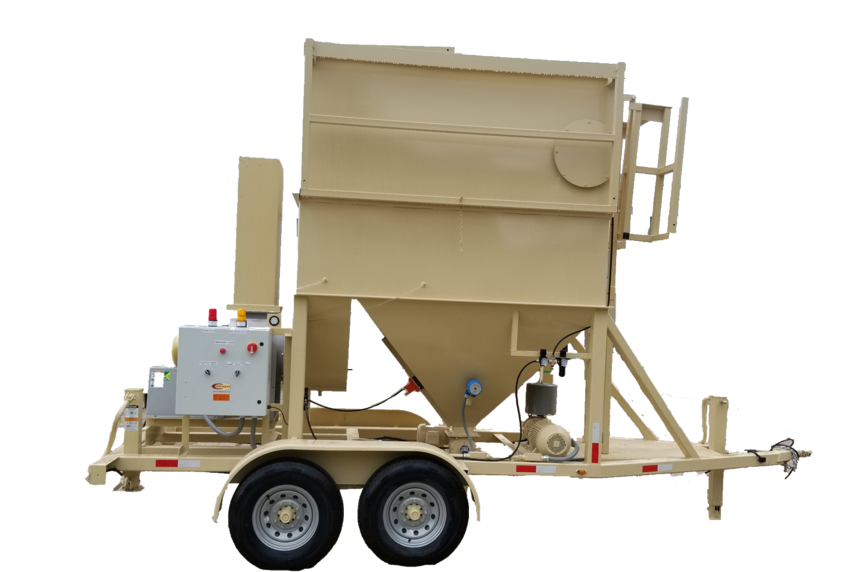

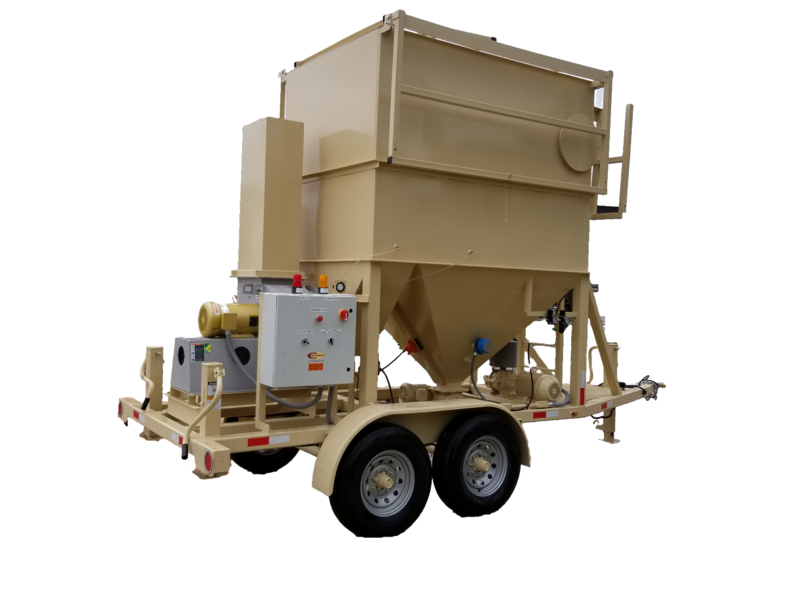

CPC-2040M - Mobile Central Dust Collector
