SPC-8 Silo Top Dust Collector:

  • Pulse Jet type collector, rated at 1745 CFM with a 99.99 % cleaning efficiency.
  •   Rectangular design with the mounting flange. Includes required bolts.
  •   Single compartment (8) 8” x 40” top entry cartridges with a total of 396 sq. ft. of filtration area.
  •   Hinged lid with lock mechanism allows access for cartridge replacement.
  •   (2) ¾” valves are externally mounted for easy maintenance on a heavy duty air manifold.
  •   (1) filter/regulator with ½” air tubing connector is externally mounted and preset at the factory to 100 psi.
  •   Factory installed external mounts for the optional bolt-on access deck that allows easier and faster cartridge replacement.
  •   Factory installed mount and air-line ports for the optional minihelic gauge.
  •   The SPC-8 is designed to operate on its own and all cycle times are adjustable. Upon powering up the control system, the cycle timer will initiate a standard cleaning    cycle.  The control timer is set at the factory for a 30-millisecond blast of air every 15 seconds.
  •    Painted with two-part polyurethane in white, gray or tan.

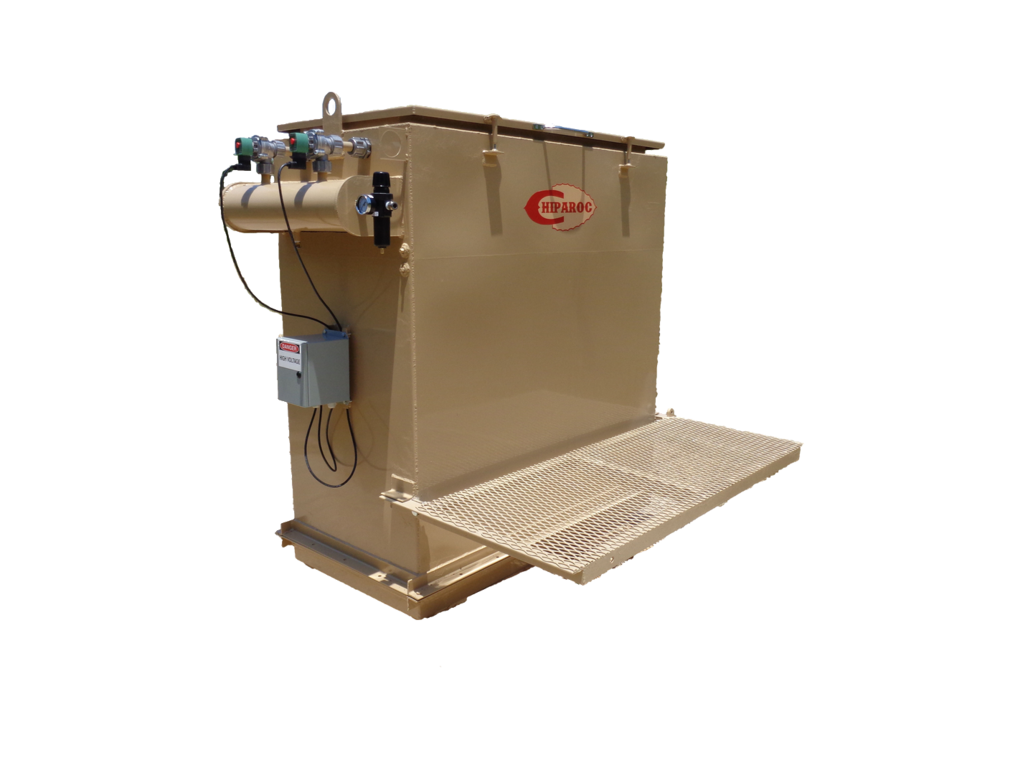

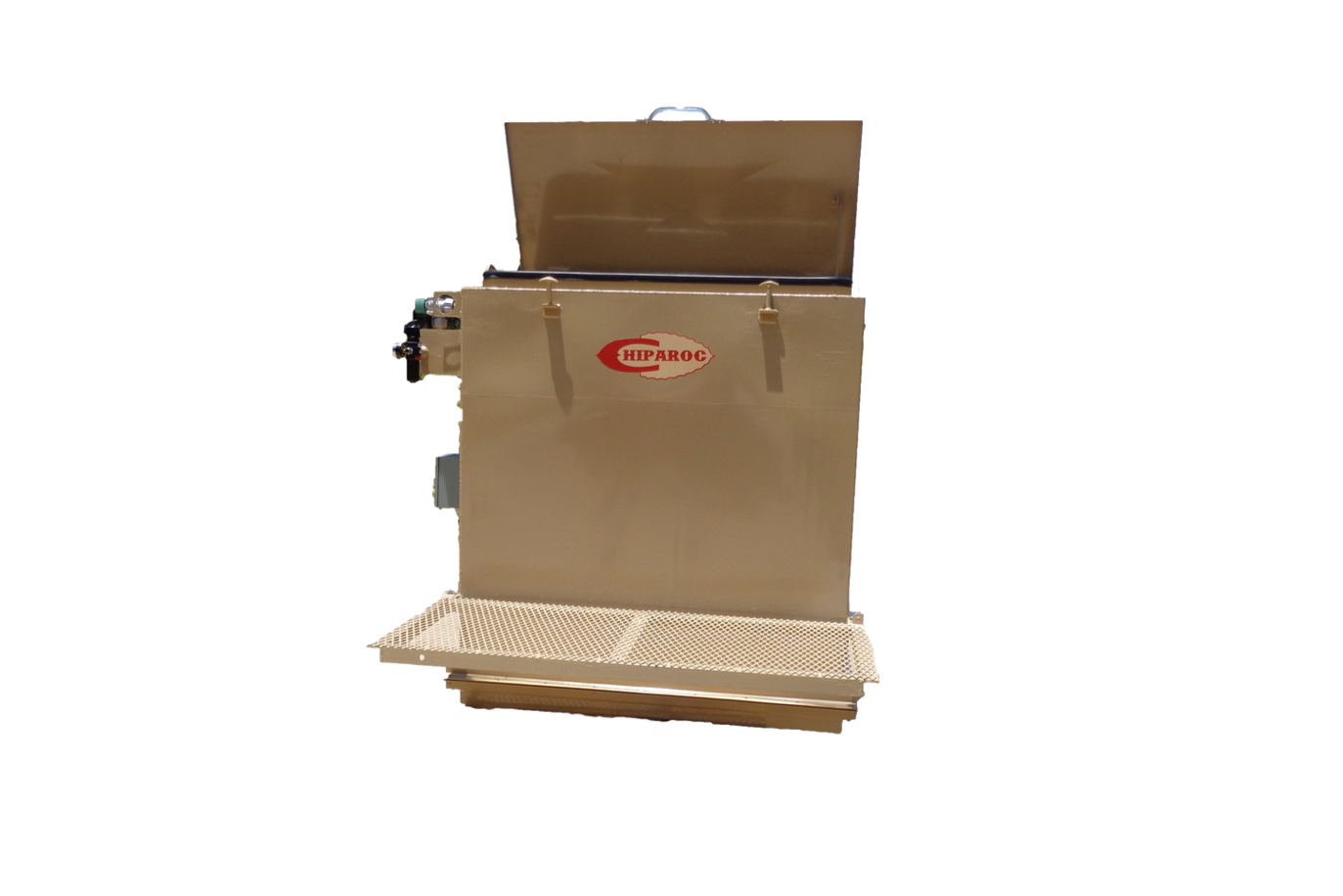

SPC-8 Silo Top Collector
